MaestroDMX™-Erweiterungsset ArtNET: Showtec NET-4/5 IP

ATTENTION 5-Pin Connection!

The Showtec NET-4/5 IP Set includes a powerful 4-port DMX Ethernet node for converting Art-Net data into DMX-512 signals. In addition to the robust NET-4/5 IP device, this set also includes a 10m CAT6 Ethernet cable and a German- and English-language quick start guide, specifically created for this product, providing step-by-step instructions on how to use it with MaestroDMX™.

This allows you to effortlessly unlock four additional DMX universes and expand your lighting network. Of course, the set also includes our professionally created and exclusive 40 MaestroDMX™ Show Cues, completely free of charge.

Highlights

• Set includes a 10m CAT6 Ethernet cable and a 1.5 m Power Pro True mains cable

• German and English quick start guide for setup with MaestroDMX™

• Showfiles tailored to different musical moods for MaestroDMX™

• Supports Art-Net and sACN protocols

• 4 additional DMX universes for input and output

• Web interface for remote configuration

• PoE (Power over Ethernet) support

• OLED display with intuitive menu navigation

• IP65-rated aluminium housing with a robust design for indoor and outdoor use

• Galvanically isolated DMX ports and truss mounting capability

Product Description

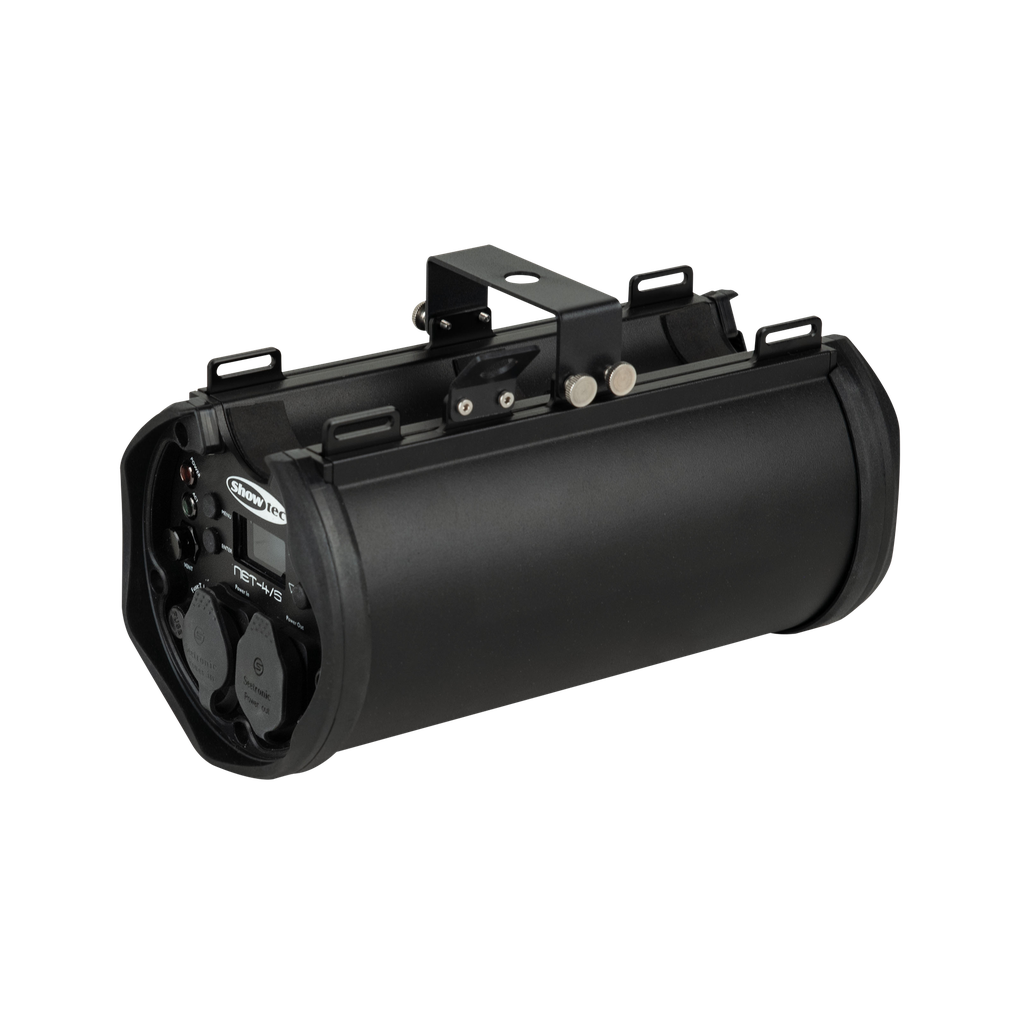

The Showtec NET-4/5 IP is a modern network node that reliably converts Art-Net and sACN data into DMX/RDM signals and vice versa. Thanks to Power over Ethernet (PoE), the device can be powered directly through the network cable. Alternatively, it can be powered via the included 1.5 m Power Pro True mains cable.

A single CAT6 cable allows you to transmit an additional 2,048 DMX channels.

Technical Specifications

• Electrical Specifications

• Power Supply: 100–230 V AC, 50/60 Hz

• Power over Ethernet (PoE): Yes

• Power Consumption: 5 W

• Fuse: T 1 A, 250 V

Connections

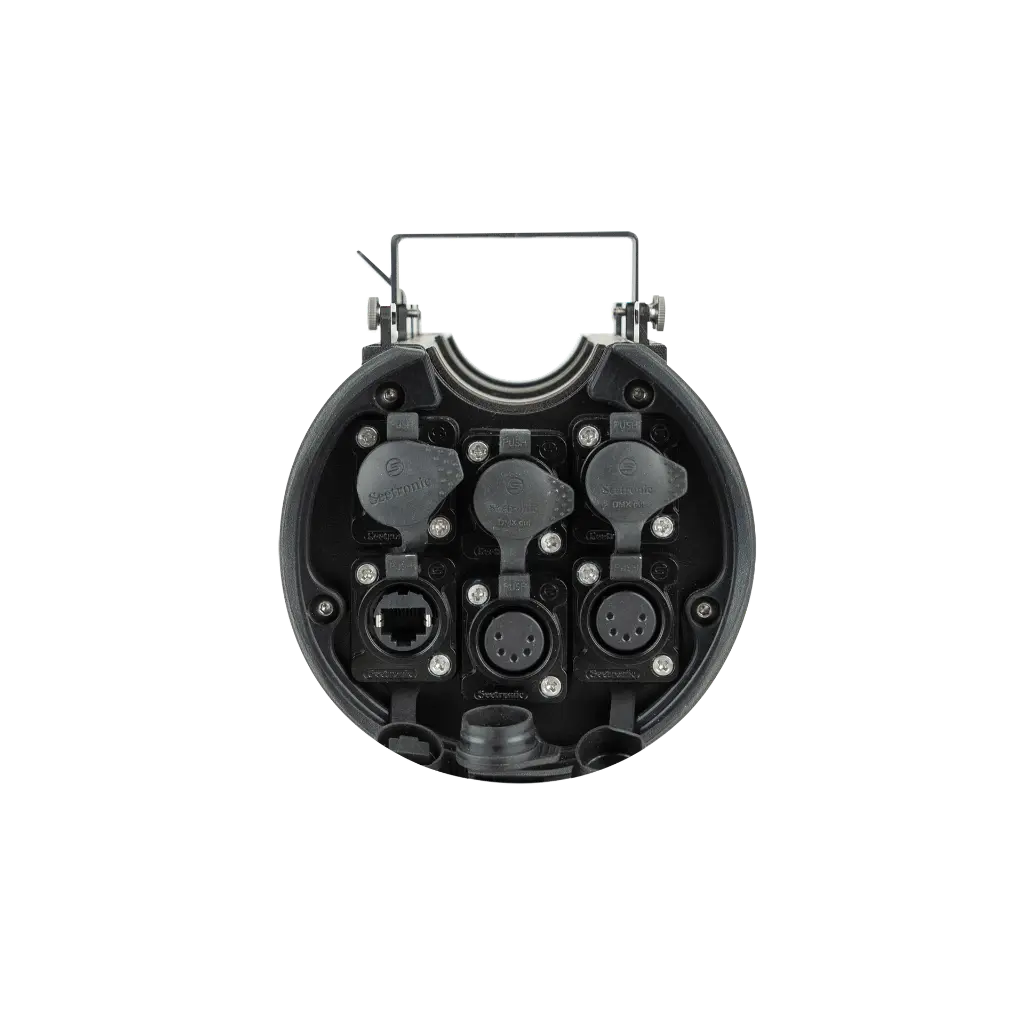

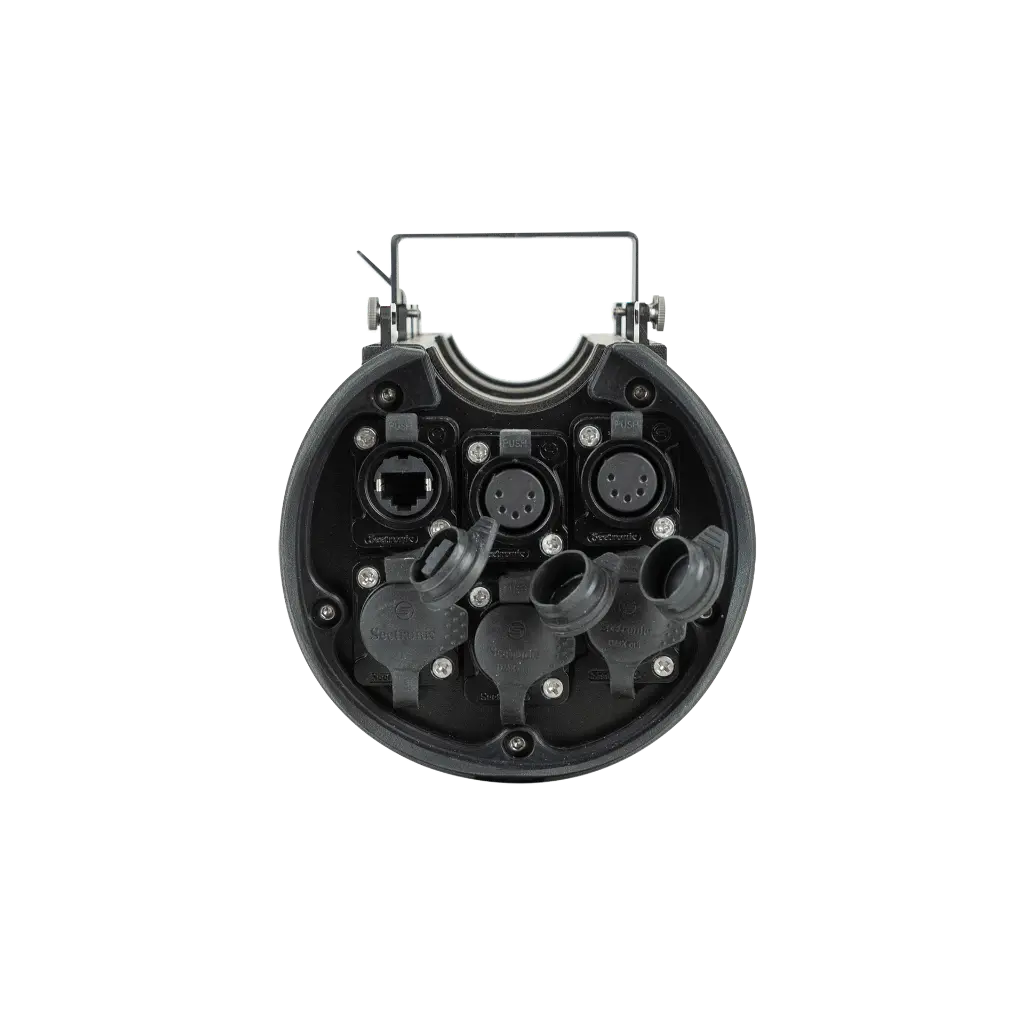

• DMX In/Out: 4 × 5-pin XLR

• Network: 2 × RJ45 (Ethernet IN/THRU)

• Power Connection: Power Pro True IN/OUT

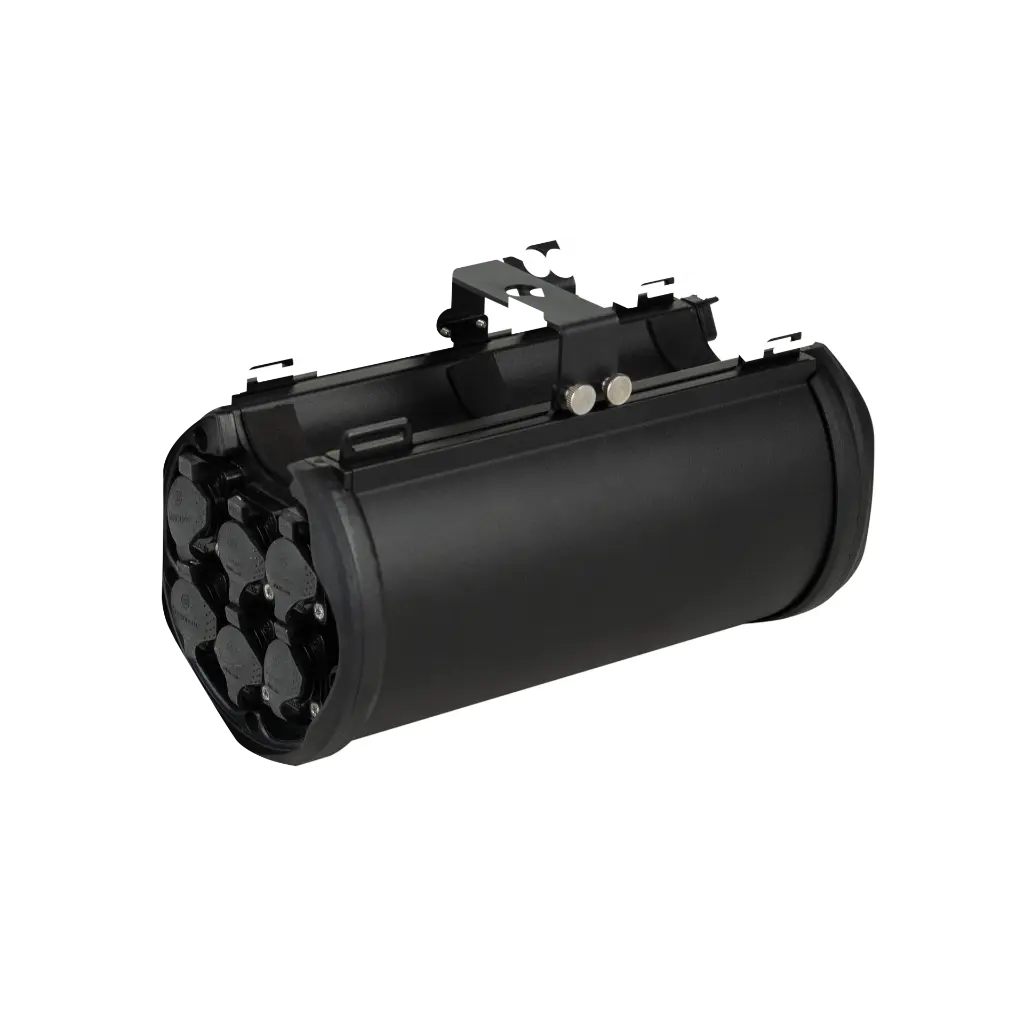

Mechanical Specifications & Housing

• Dimensions (L × W × H): 245 × 125 × 150 mm

• Weight: 2.5 kg

• Housing: Aluminium

• Color: Black

• Protection Rating: IP65 (indoor and outdoor use)

Temperature Range

• Operating Temperature: -5 °C to +40 °C

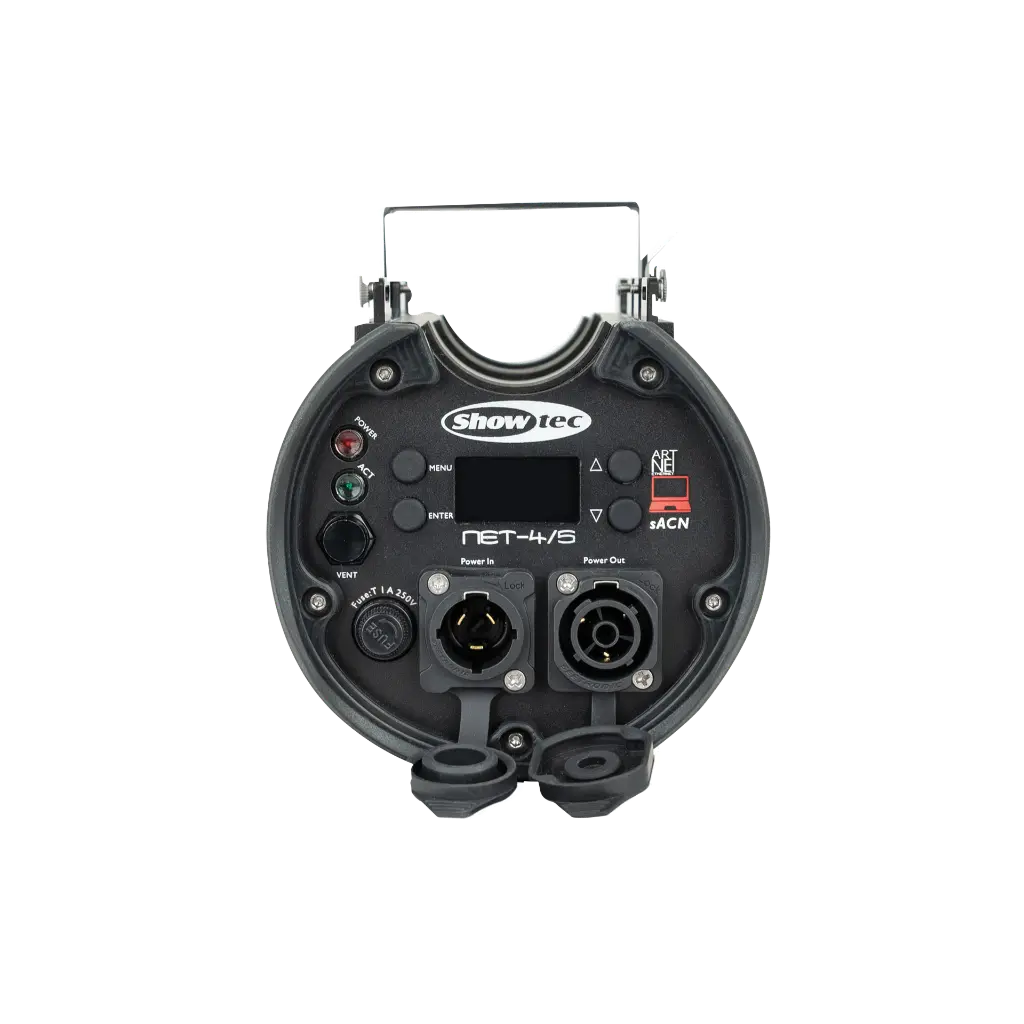

Display & Control

• Display: OLED

• LEDs: Power, Ethernet

• Protocols: Art-Net, DMX, RDM, sACN

• Control: Via DMX, Art-Net, or PC software

• Additional Universes: 4

Scope of Delivery

• Showtec NET-4/5 IP

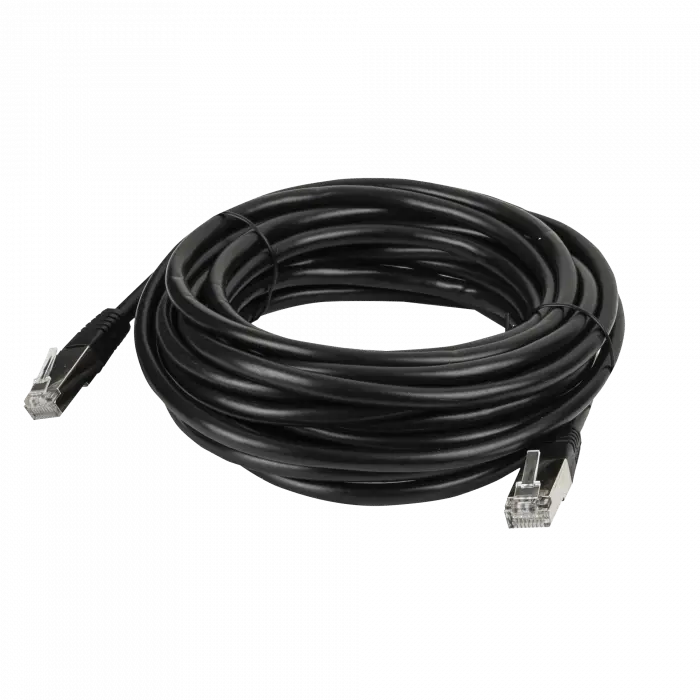

• 10m CAT6 Ethernet cable

• 1.5 m Power Pro True mains cable

• Mounting bracket and 2 hook-and-loop straps

• Manufacturer user manual

• English & German MaestroDMX quick start guide (via email)

• 2 showfiles containing a total of 40 MaestroDMX™ Show Triggers
