MaestroDMX™ Expansion Set ArtNET: Showtec NET-2/5 Pocket

ATTENTION 5-Pin Connection!

The Showtec NET-2/5 Pocket Set includes a powerful 2-port DMX Ethernet node for converting Art-Net data into DMX-512 signals. In addition to the compact NET-2/5 device, this set also includes a 1.5 m CAT6 Ethernet cable and a German- and English-language quick start guide, specifically created for this product, providing step-by-step instructions on how to use it with MaestroDMX™.

This allows you to effortlessly unlock two additional DMX universes and expand your lighting network. Of course, the set also includes our professionally created and exclusive 40 MaestroDMX™ Show Cues, completely free of charge.

Highlights

• Set includes a 1.5 m CAT6 Ethernet cable and a 12 V power adapter

• German and English quick start guide for setup with MaestroDMX™

• Showfiles tailored to different musical moods for MaestroDMX™

• Supports Art-Net and sACN protocols

• 2 additional DMX universes for input or output

• Web interface for remote configuration

• PoE support (IEEE 802.3af)

• OLED display with intuitive menu navigation

• Compact metal housing with a robust design

Product Description

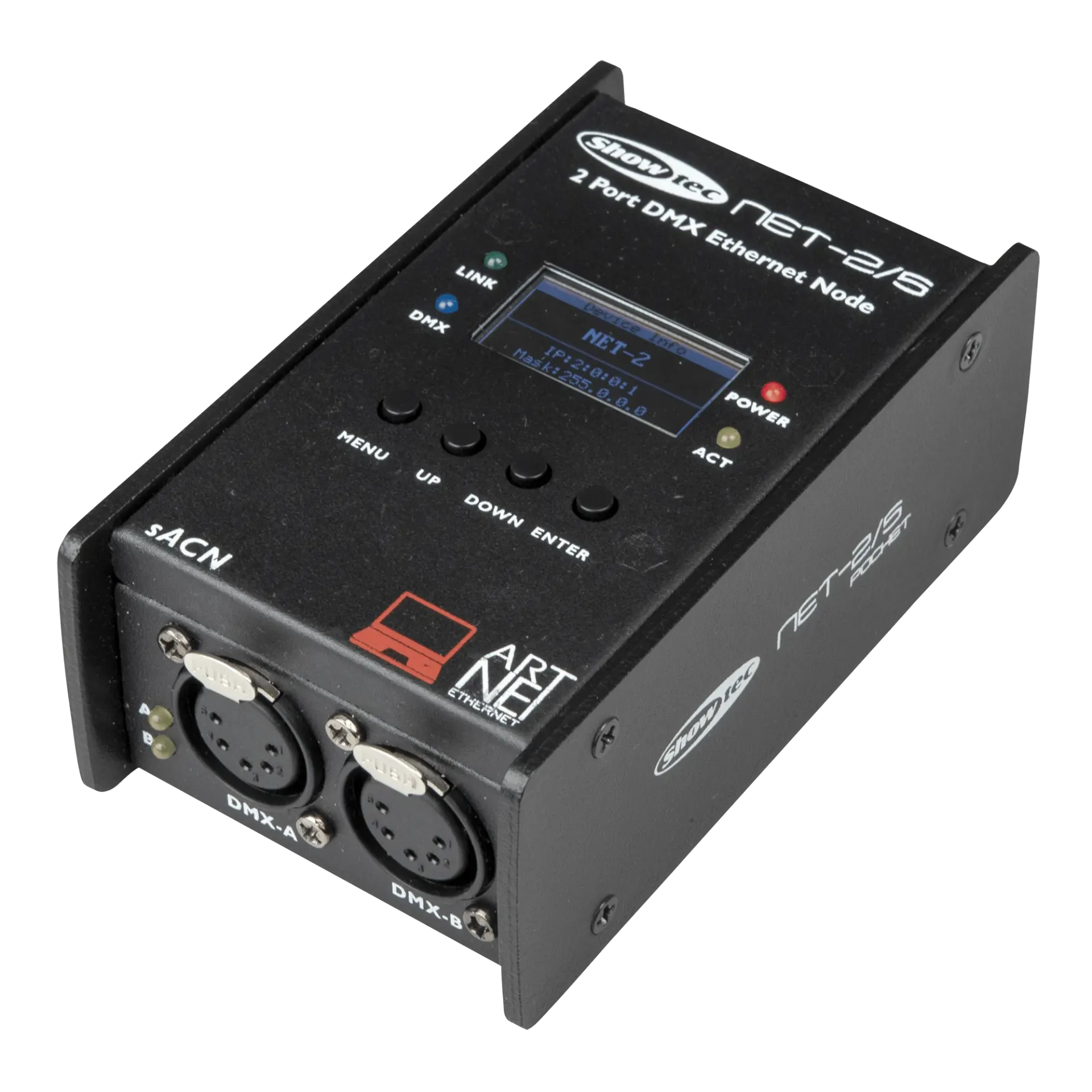

The Showtec NET-2/5 Pocket is a modern network node that reliably converts Art-Net and sACN data into DMX signals and vice versa. Thanks to Power over Ethernet (PoE), the device can be powered directly through the network cable. Alternatively, a separate 12 V power adapter is also included.

A single CAT6 cable allows you to transmit an additional 1,024 DMX channels.

Configuration is easy and convenient using the integrated OLED display or remotely via a web browser:

Default login: Admin | Password: Admin

Technical Specifications

• Electrical Specifications

• Power Supply: 100–240 V AC, 50/60 Hz (adapter)

• Power over Ethernet (PoE): Yes

• Power Consumption: 8 W

• Output Voltage (Adapter): 12 V DC

Connections

• DMX In/Out: 5-pin XLR

• Network: etherCON

• Power Connection: DC connector

Mechanical Specifications & Housing

• Dimensions (L × W × H): 115 × 67 × 44 mm

• Weight: 0.3 kg

• Housing: Metal / Plastic

• Color: Black

• Protection Rating: IP20 (indoor use only)

Temperature Range

• Operating Temperature: -5 °C to +40 °C

Display & Control

• Display: OLED

• LEDs: Power, Signal, Operating Mode

• Protocols: Art-Net, DMX, RDM, sACN, TCP-IPv4

• Control: Via DMX, Art-Net, or PC software

• Additional Universes: 2

Scope of Delivery

• Showtec NET-2/5 Pocket

• 1.5 m CAT6 Ethernet cable

• AC/DC power adapter

• English & German MaestroDMX quick start guide (via email)

• 2 showfiles containing a total of 40 MaestroDMX™ Show Triggers
