MaestroDMX™ expansion set ArtNET: Showtec NET-2/3 Pocket

The Showtec NET-2/3 Pocket Set consists of a powerful 2-port DMX Ethernet node for converting Art-Net data into DMX-512 signals. In addition to the compact NET-2/3 device, this set also includes a 1.5 m CAT6 Ethernet cable as well as a German quick start guide specifically for this product, which explains step by step how to use it with MaestroDMX™. This allows you to unlock the second DMX universe in no time and expand your lighting network. Of course, the set also includes our professionally created and exclusive 40 MaestroDMX™ show cues free of charge.

Highlights

• Set includes 1.5 m CAT6 Ethernet cable and 12V power adapter
• German and english quick start guide for setup with MaestroDMX™
• Showfiles tailored to musical moods for MaestroDMX™
• Supports Art-Net and sACN protocol
• 2 universes DMX input or output (via MaestroDMX currently only one universe is output on both ports -> second universe via built-in DMX output of MaestroDMX)
• Web interface for remote configuration
• PoE support (IEEE 802.3af)
• OLED display with clear menu navigation
• Compact metal housing with robust design

Product description

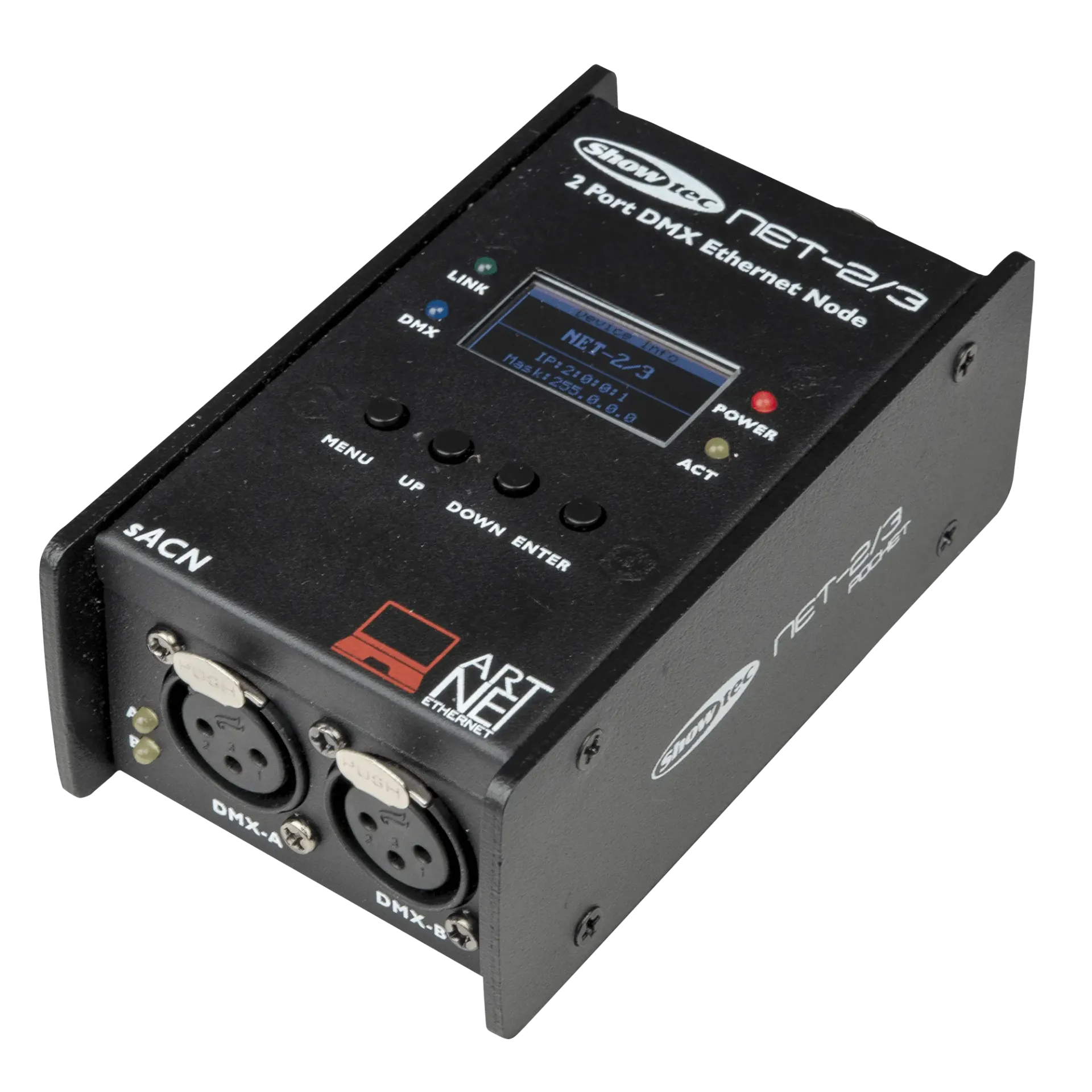

The Showtec NET-2/3 Pocket is a modern network router that reliably converts Art-Net and sACN data into DMX signals and vice versa. Thanks to Power over Ethernet (PoE), the device can be powered directly via the network cable – a separate 12 V power supply is also included. Up to 1024 DMX channels can be transmitted via a simple CAT6 cable (please note instructions).

Configuration is conveniently done via the integrated OLED display or remotely via a web browser.

Default login: Admin | Password: Admin

Technical data

• Electrical specifications
• Power supply: 100–240 V AC, 50/60 Hz (adapter)
• Power over Ethernet (PoE): Yes
• Power consumption: 8 W
• Output voltage (adapter): 12 V DC

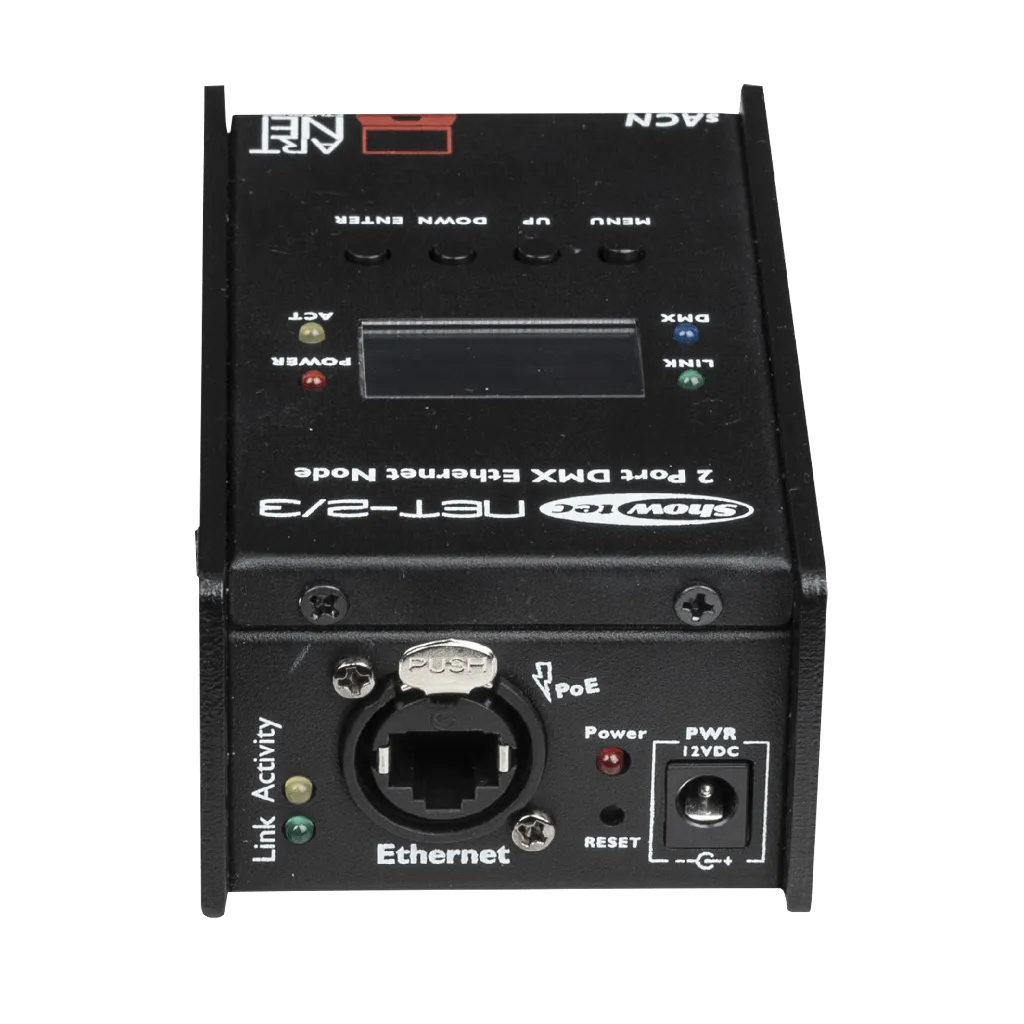

Connections

• DMX In/Out: XLR 3P
• Network: etherCON
• Power connection: DC connector

Mechanics & housing

• Dimensions (L × W × H): 115 × 67 × 44 mm
• Weight: 0.3 kg
• Housing: Metal / plastic
• Color: Black
• Protection class: IP20 (indoor use)

Temperature range

• Operating: -5 °C to +40 °C

Display & control

• Display: OLED
• LEDs: Power, signal, operating mode
• Protocols: Art-Net, DMX, RDM, sACN, TCP-IPv4
• Control: via DMX, Art-Net or PC software
• Universes: 2 (currently only 1 universe from MaestroDMX is output on both ports -> 2nd universe via built-in DMX output of MaestroDMX)

Scope of delivery

• Showtec NET-2/3 Pocket
• 1.5 m CAT6 Ethernet cable

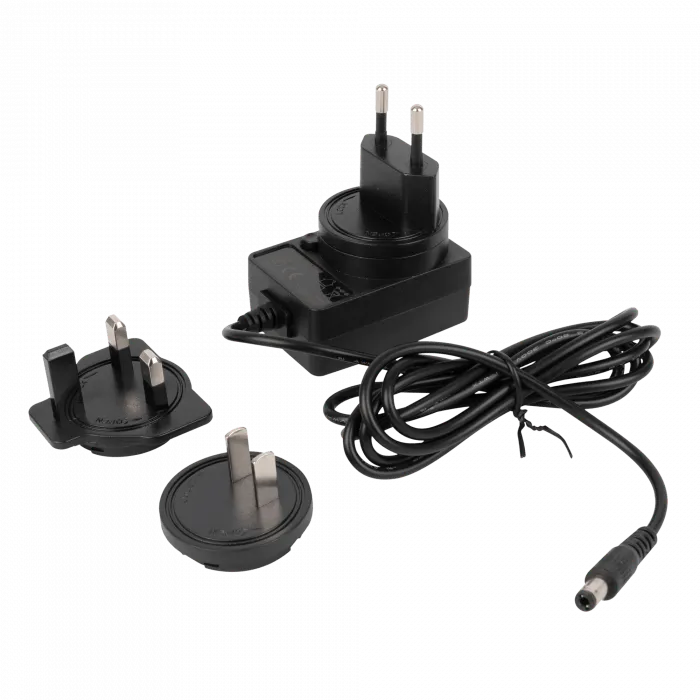

• AC/DC power adapter
• German MaestroDMX quick start guide (via email) or preconfigured ArtNet node
• 2 showfiles with a total of 40 MaestroDMX™ show cues

WORKS RELIABLY!

ATTENTION: Currently, only one universe is output via MaestroDMX on both ports of the ArtNet node -> second universe via the built-in DMX output of MaestroDMX.

In the future, an update is planned to enable output of both universes via this ArtNet node.
