Set di espansione MaestroDMX™ ArtNET: Showtec NET-2/3 Pocket
The Showtec NET-2/3 Pocket Set consists of a powerful 2-port DMX Ethernet node for converting Art-Net data into DMX-512 signals. In addition to the compact NET-2/3 device, this set also includes a 1.5 m CAT6 Ethernet cable as well as a German and english speaking quick start guide specifically for this product, which explains step by step how to use it with MaestroDMX™. This allows you to unlock the second DMX universe in no time and expand your lighting network. Of course, the set also includes our professionally created and exclusive 40 MaestroDMX™ show cues free of charge.
Highlights
- Set includes 1.5 m CAT6 Ethernet cable and 12V power adapter
- German and english quick start guide for setup with MaestroDMX™
- Showfiles tailored to musical moods for MaestroDMX™
- Supports Art-Net and sACN protocol
- 2 universes DMX input or output (via MaestroDMX currently only one universe is output on both ports -> second universe via built-in DMX output of MaestroDMX)
- Web interface for remote configuration
- PoE support (IEEE 802.3af)
- OLED display with clear menu navigation
- Compact metal housing with robust design
Product description

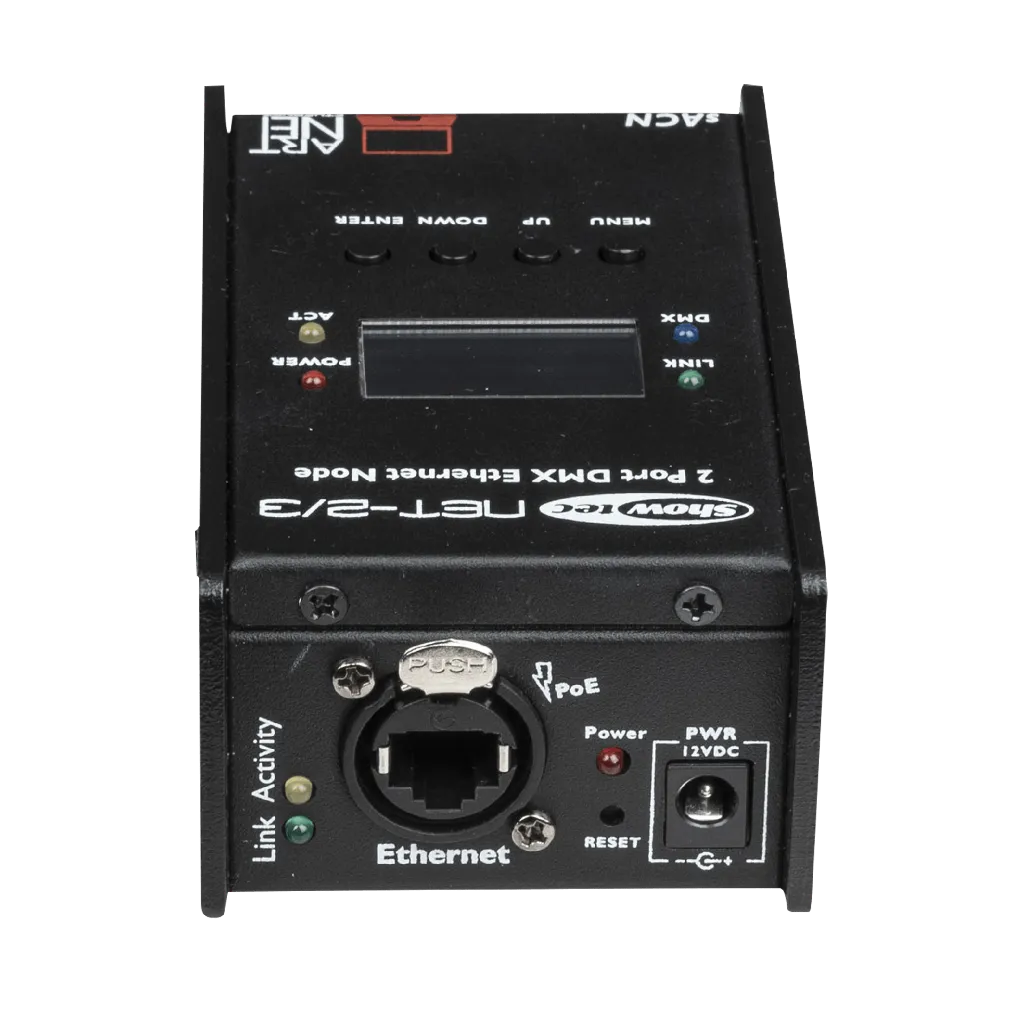

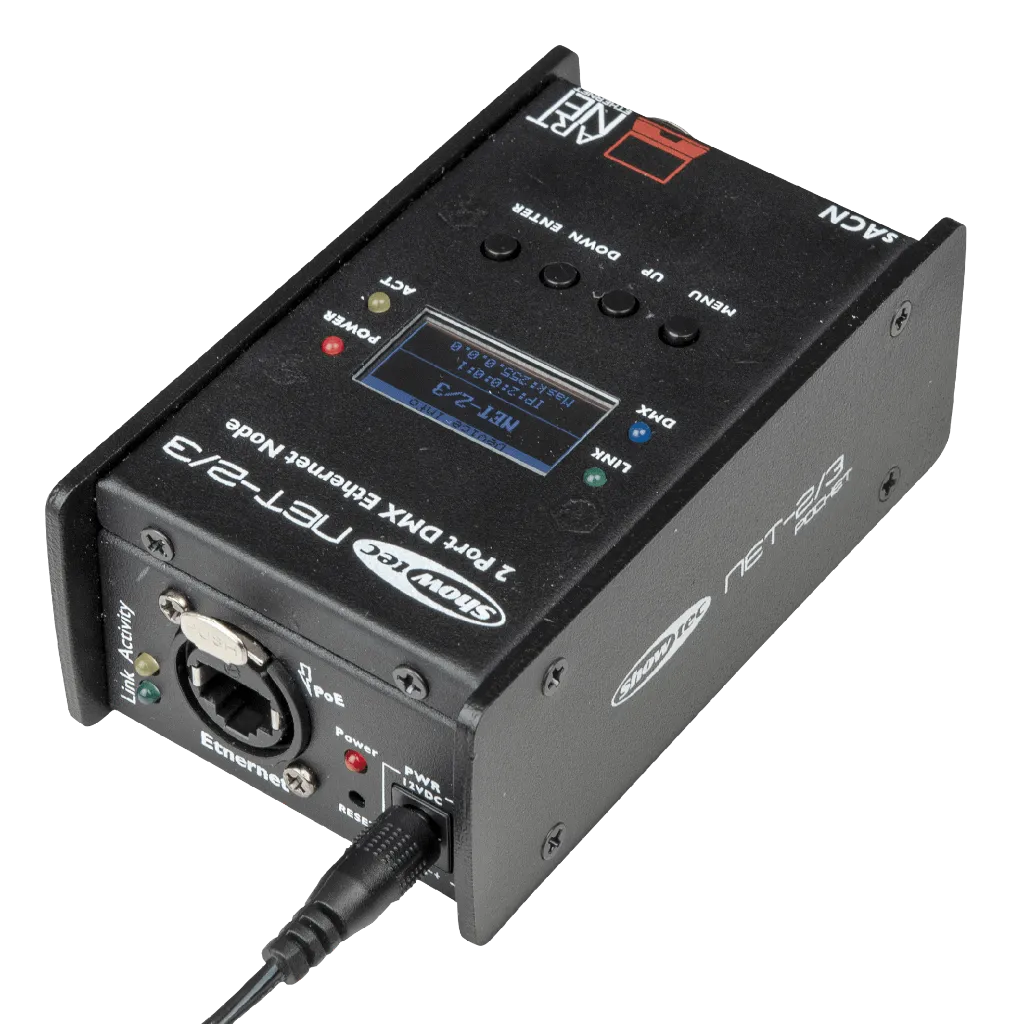

The Showtec NET-2/3 Pocket is a modern network router that reliably converts Art-Net and sACN data into DMX signals and vice versa. Thanks to Power over Ethernet (PoE), the device can be powered directly via the network cable – a separate 12 V power supply is also included. Up to 1024 DMX channels can be transmitted via a simple CAT6 cable (please note instructions).
Configuration is conveniently done via the integrated OLED display or remotely via a web browser:
Default login: Admin | Password: Admin
Technical data
- Electrical specifications
- Power supply: 100–240 V AC, 50/60 Hz (adapter)
- Power over Ethernet (PoE): Yes
- Power consumption: 8 W
- Output voltage (adapter): 12 V DC
Connections
- DMX In/Out: XLR 3P
- Network: etherCON
- Power connection: DC connector
Mechanics & housing
- Dimensions (L × W × H): 115 × 67 × 44 mm
- Weight: 0.3 kg
- Housing: Metal / plastic
- Color: Black
- Protection class: IP20 (indoor use)
Temperature range
- Operating: -5 °C to +40 °C
Display & control
- Display: OLED
- LEDs: Power, signal, operating mode
- Protocols: Art-Net, DMX, RDM, sACN, TCP-IPv4
- Control: via DMX, Art-Net or PC software
- Universes: 2 (currently only 1 universe from MaestroDMX is output on both ports -> 2nd universe via built-in DMX output of MaestroDMX)
Scope of delivery
- Showtec NET-2/3 Pocket
- 1.5 m CAT6 Ethernet cable

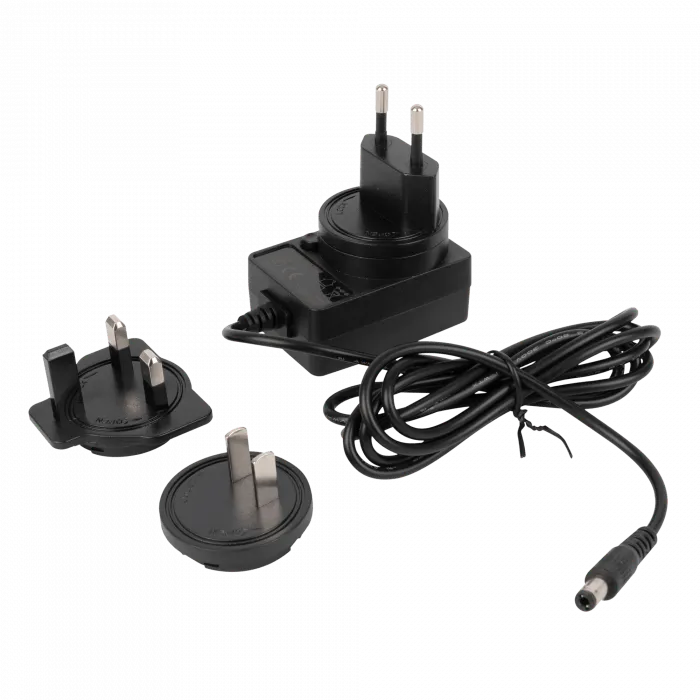

- AC/DC power adapter
- German MaestroDMX quick start guide (via email) or preconfigured ArtNet node
- 2 showfiles with a total of 40 MaestroDMX™ show cues
WORKS RELIABLY!
ATTENTION: Currently, only one universe is output via MaestroDMX on both ports of the ArtNet node -> second universe via the built-in DMX output of MaestroDMX.
In the future, an update is planned to enable output of both universes via this ArtNet node.
-
